Flat thin 50kg micro load cell,Easy Calibration and Maintenance,Safety and Low Power Consumption
Features:
1.Manganess steel material
2.Electronic body scale
Parameters:
| Item |
Specification |
| Range |
50kg |
| Comprehensive error |
0.3%F.S |
| Zero balance |
±0.5mv/v |
| Sensitivity |
1.0±0.15mv/v |
| Linearity |
0.3%F.S |
| Hysteresis |
0.3%F.S |
| Repeatability |
0.2%F.S |
| Creep |
0.2%F.S/3min |
| Input(output) resistance |
1000±10ohm |
| Use Temp |
-10~40℃ |
| Position error |
0.1%F.S |
| Temp. effect on zero |
0.3%F.S/10℃ |
| Temp. effect on span |
0.3%F.S/10℃ |
| Insulation resistance |
≥1500MΩ |
| Excitation voltage |
3-10Vdc |
| Ultimate overload |
150%F.S |
| Dimensions |
28x28x3.2mm |
| Cable |
φ0.8x400mm |

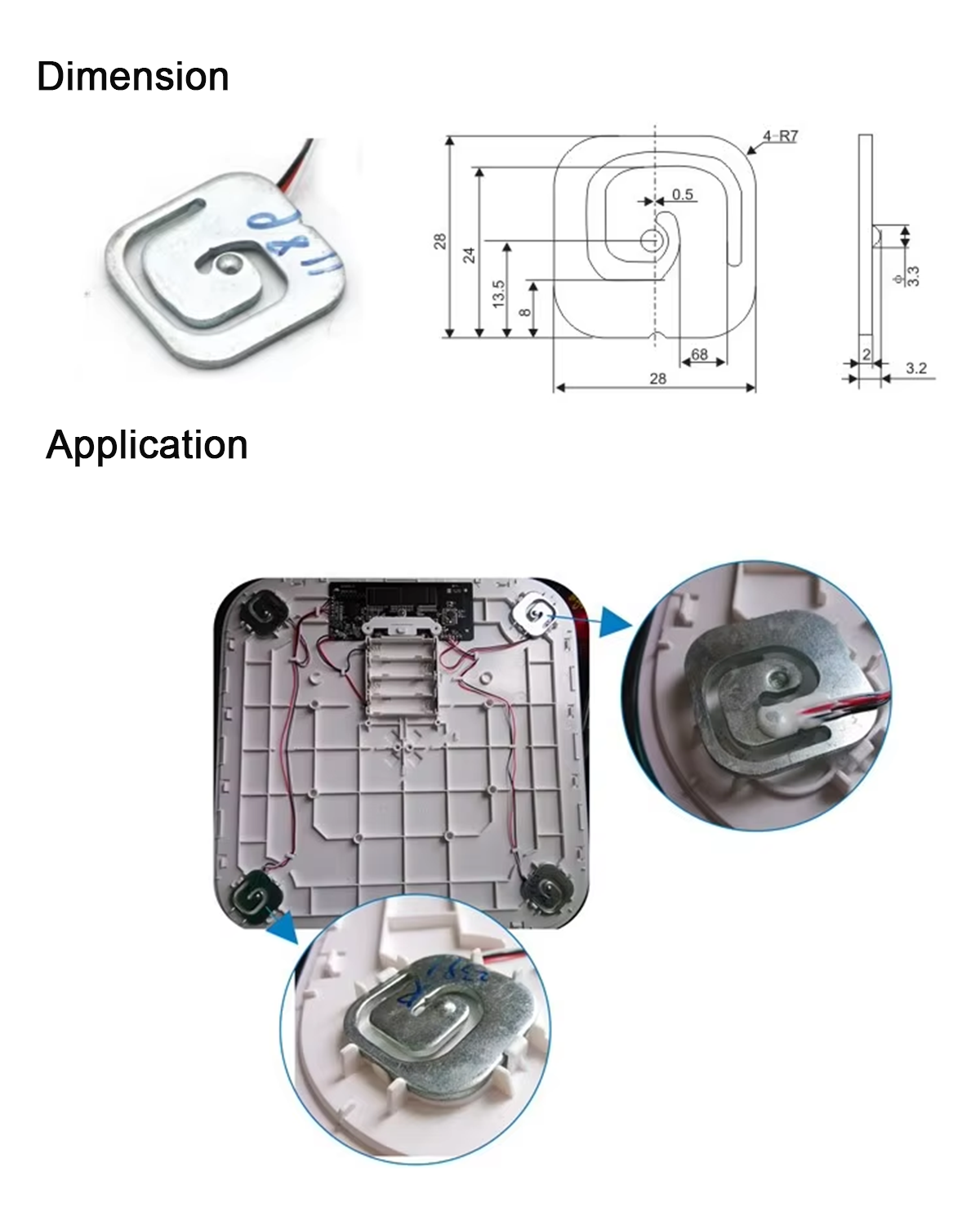

Dimension:
