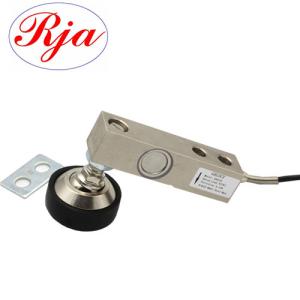

Forklift Scale Shear Beam Load Cell For Pressure Sensor 4mA - 20mA / 0 - 5V Output

Name: Forklift Scale Shear Beam Load Cell For Pressure Sensor 4mA 20mA 0 5V Output
Brand: ruijia
Price: 13 USD

China Forklift Scale Shear Beam Load Cell For Pressure Sensor 4mA - 20mA / 0 - 5V Output wholesale

Usage : Pressure Sensor

Theory : Resistance Sensor

Output : Analog Sensor

Capacity : 500kg-10ton

Comprehensive error (%F.S) : ≤±0.02%F.S

Application : truck scale, electronic scale and other weighing devices

Material : Alloy steel or stainless steel

Optional internal transmitter : 4-20mA or 0-5V output

Brand Name : ruijia

Model Number : RJ-9810

Place of Origin : china

MOQ : 1pc

Price : USD13-40/pc

Payment Terms : L/C, T/T, Western Union,

Supply Ability : 10000 Piece/Pieces per Month

Delivery Time : 2-4weeks

Packaging Details : Product packed in foam box with bubble bag

Contact Now

Forklift Scale Shear Beam Load Cell 1ton 2ton 3ton 10ton Zemic H8C C3 Analog Share Single Ended

Product Description

♦ Made of alloy steel or stainless steel

♦ Suitable for truck scale, electronic scale and other weighing devices

♦ Optional internal transmitter for 4-20mA or 0-5V output

What advantages of forklift scale shear beam load cell 3 ton?

Rated load		100 200 300 500 1000 2000 3000kg/10000kg can be customized
Accuracy class		C3
Rated output		2.0±0.004mV/V
Comprehensive error		≤±0.02%F.S
Creep		0.02%F.S/30min
Zero balance		±1.0%F.S
Temperature effect on sensitivity		0.016%F.S/℃
Temperature effect on zero		0.002%F.S/℃
Input resistance		365±10Ω
Output resistance		350±3Ω
Insulation resistance		≥5000MΩ(50VDC)
Excitation voltage		5~12VDC
Compensated temp.range		-10~+40℃
Use temp.range		-35~+80℃
Safe overload		150%
Ultimate overload		200%
Load cell material		Alloy steel
Defend grade		IP67
Cable		Φ5.7mm*2m

What dimension of forklift scale shear beam load cell 3 ton?

Forklift Scale Shear Beam Load Cell For Pressure Sensor 4mA - 20mA / 0 - 5V Output

Detailed Images

What details of forklift scale shear beam load cell 3 ton?

Forklift Scale Shear Beam Load Cell For Pressure Sensor 4mA - 20mA / 0 - 5V Output

Application

What application of forklift scale shear beam load cell 3 ton?

Forklift Scale Shear Beam Load Cell For Pressure Sensor 4mA - 20mA / 0 - 5V Output
